QG pulse air dryer

Features

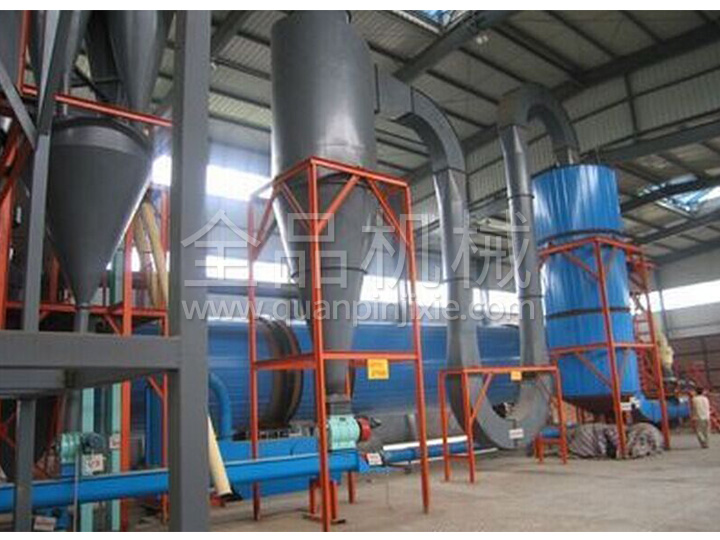

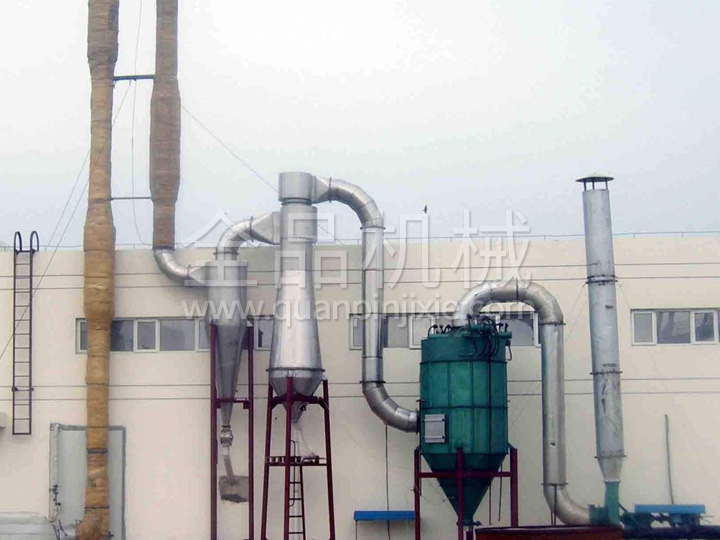

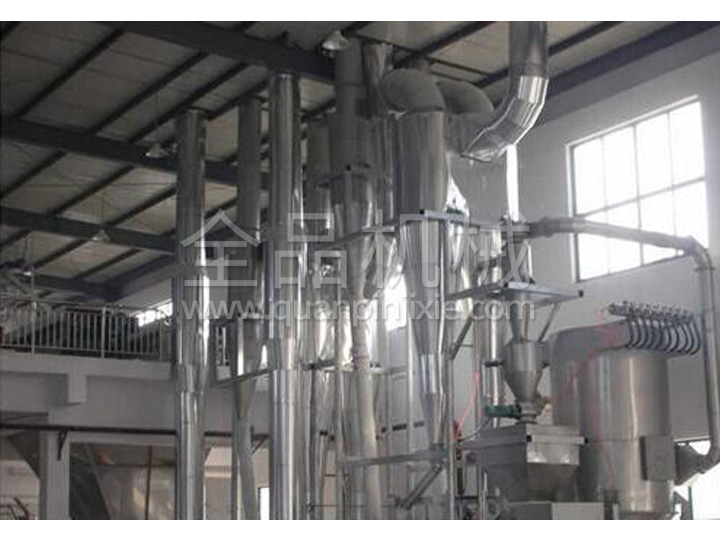

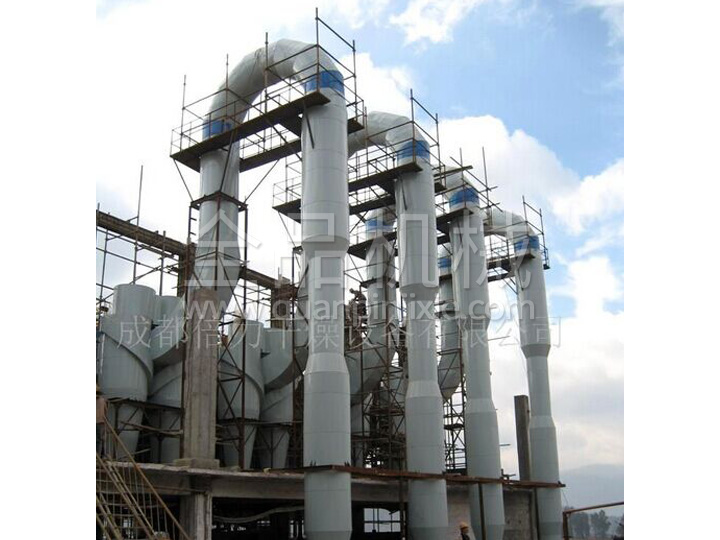

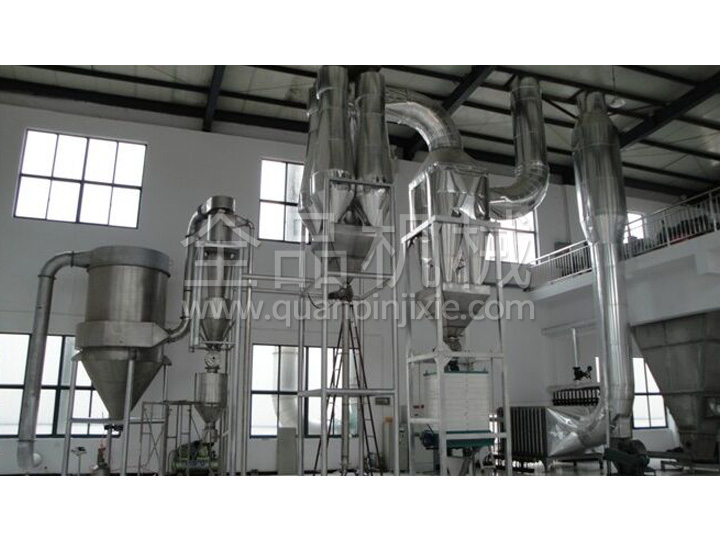

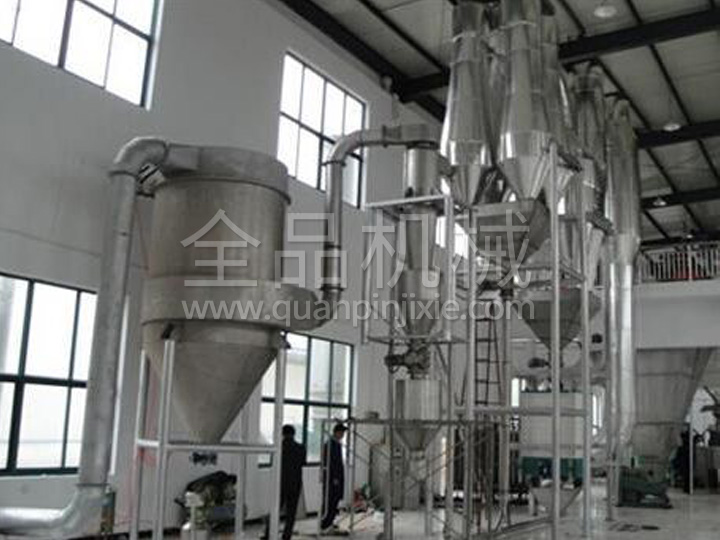

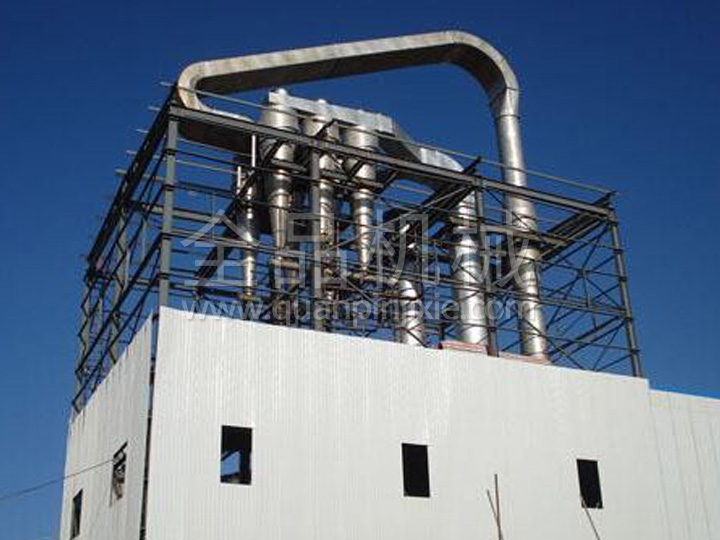

QG series pulse air dryer is a kind of large-scale drying equipment. It adopts the principle of instant drying and uses the rapid movement of heat-carrying air to drive the wet materials and suspend the wet materials in the hot air, thus strengthening the entire drying process. , Improve the heat and mass transfer rate, the materials dried by the airflow, the unbound moisture can be almost completely removed, and the dried materials will not be deteriorated, the output can be significantly improved compared with the drying of ordinary dryers, and the user can be in a short-term Achieve higher economic benefits within.

Adapt to materials
This type of equipment is suitable for more materials. In addition to the materials mentioned in the basic type, there are also: hymenone, A. B. C intermediate, A. B. S resin, A. S. C. White carbon black, benzopyrazolone, tea meal, oxalic acid catalyst, accelerator m. d. m. Catalyst, precipitated charcoal powder, p-acetylnitrobenzenesulfonamide, p-aminosalicylic acid, dolmatol, terephthalic acid, diethyl ammonium ammonium, titanium dioxide, activated carbon, sodium fluorosilicate, fluorspar Mineral, silica gel powder, synthetic resin, calcium phosphate, polypropylene resin, chlortetracycline, sodium pyrosilicate, tetracycline furochloric acid coffee grounds, iron trioxide, calcium carbonate, zein, iron oxide, gypsum retarder, etc.

Key recommendation: used for drying wood flour, sawdust, rice bran, and bran.

The above-mentioned materials have special characteristics: light specific gravity, difficult to feed, flammable and explosive. In response to this situation, the new type of air dryer developed by the technical department of our company has improved the feeding form on the basis of the original air dryer and solved the "bridging" phenomenon. Innovatively improved the cyclone separator to solve the phenomenon that the material cannot be discharged when the material is rolled. System integration, advanced control, over-temperature alarm interlocking to shut off the heat source, effectively solving the problem of combustion and explosion caused by over-temperature.

Technical specifications
