Product manual
◎There are three heating methods: steam, electricity and electric steam.
◎Using temperature: steam heating 50-140℃, up to 150℃; electric heating 50-350℃;
◎The temperature is automatically controlled and recorded by a recorder;
◎The inner wall of the box is fully welded, and each transition point adopts arc transition without dead angle.
◎The whole machine has good sealing performance, and the unique guide rail sealing device ensures the sealing performance of the whole machine;
◎The air inlet is equipped with a high-efficiency air filter; the moisture outlet is equipped with a medium-efficiency air filter.
◎Double-door oven and double doors realize mechanical interlocking;
◎All parts in the oven can be quickly disassembled and installed quickly to facilitate cleaning;
◎The control system is equipped with text display and touch screen to choose from;
◎The whole machine meets the requirements of "GMP".

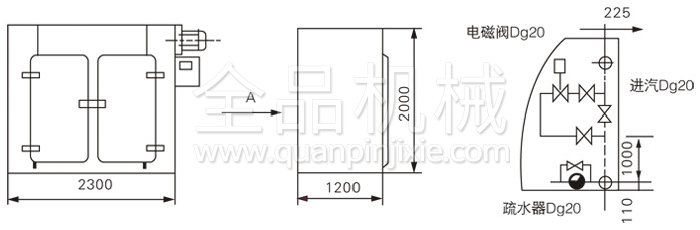

Schematic
| Model/Specification |
Dry amount per time (Kg) |
Fan power (Kw) |
Steam consumption (Kg/h) |
Baking car (Vehicle) |
Baking pan (only) |
Width × depth × height (Mm) |
Upper and lower temperature (℃) |
| GMP-O | 35 | 0.45 | 8 | / | 16 | 1130×1100×1750 | ±2 |
| GMP-I | 120 | 0.45 | 18 | 2 | 48 | 2300×1200×2000 | ±2 |
| GMP-II | 240 | 0.9 | 36 | 4 | 96 | 2300×2200×2000 | ±2 |
| GMP-III | 360 | 1.35 | 54 | 6 | 144 | 3430×2200×2000 | ±2 |
| GMP-IV | 480 | 1.8 | 72 | 8 | 192 | 4460×2200×2290 | ±2 |
