Product description

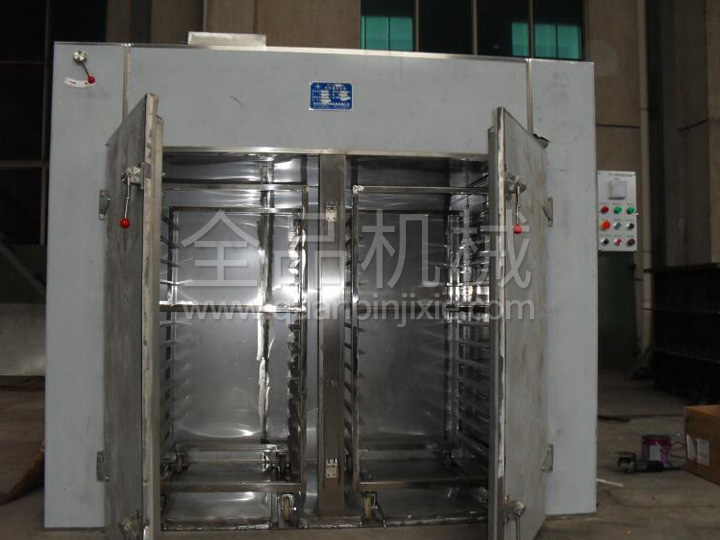

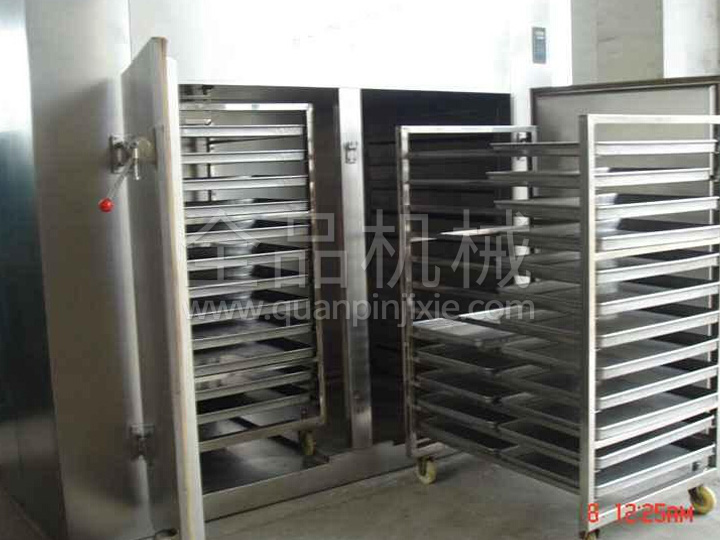

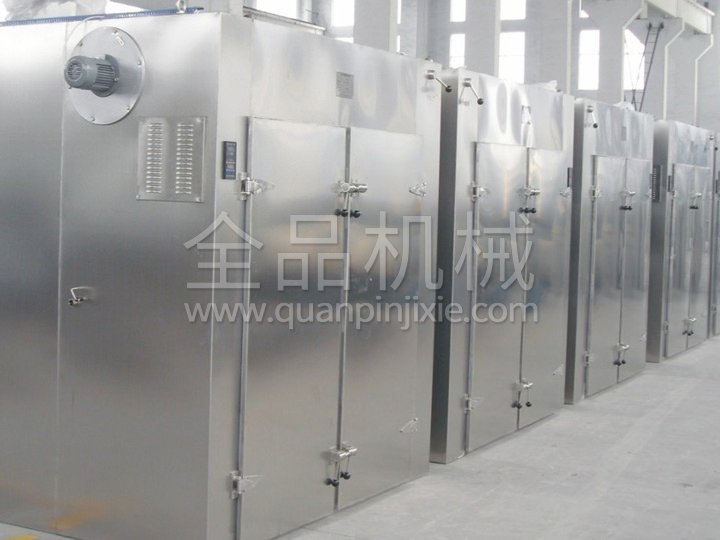

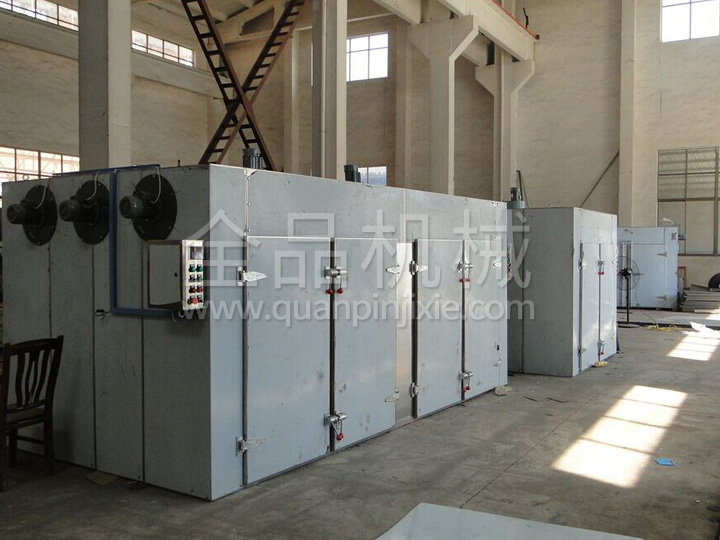

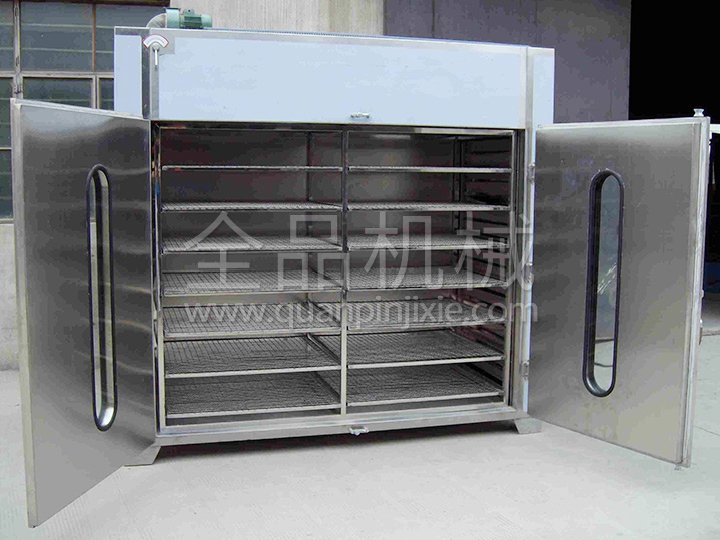

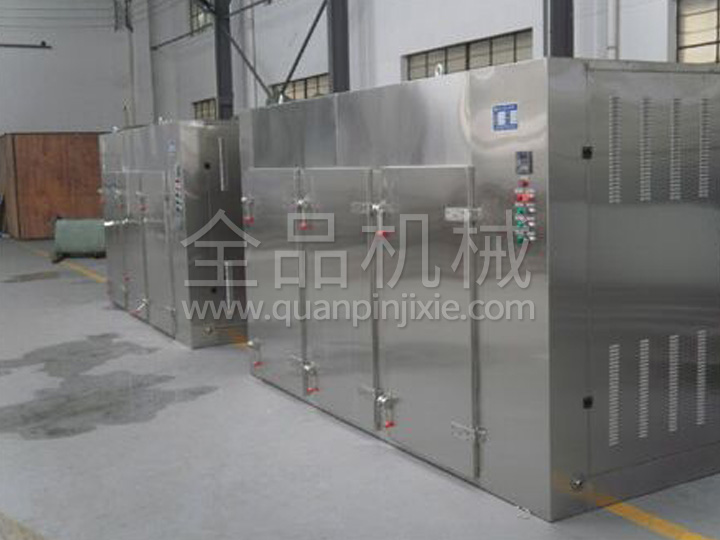

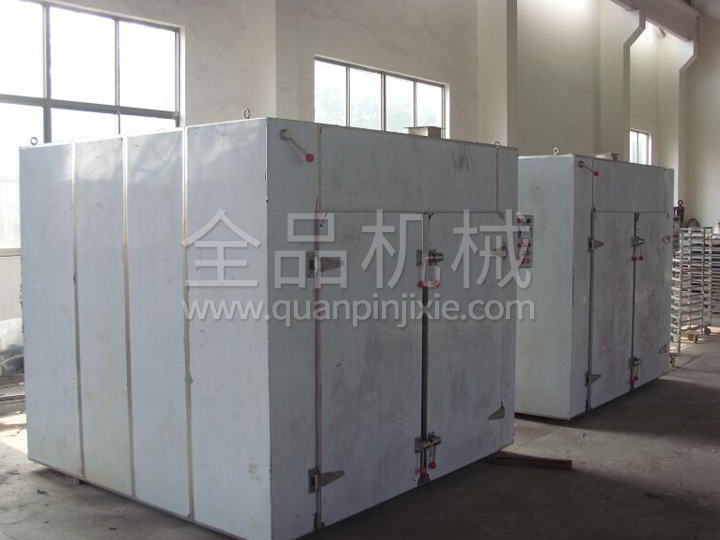

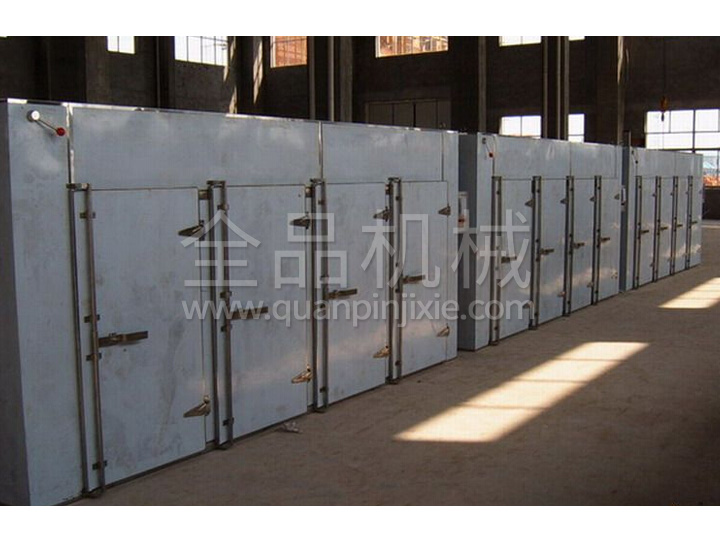

The CT-C series hot air circulation oven is equipped with a low-noise, high-temperature-resistant axial flow fan and an automatic temperature control system. The entire circulation system is fully enclosed, which improves the thermal efficiency of the oven from 3-7% of the traditional drying room to the current 35-45% , Some models are designed with thermal efficiency up to 60%.
Technical specifications
| Industry standard model |
Technical Parameters Model specification |
Dry amount per time (kg) |
Equipped with power (kw) |
Steam consumption (kg/h) |
Cooling area (m2) |
Air volume (m3/h) |
Temperature difference between upper and lower (oC) |
Equipped with baking tray |
Dimensions Face width×depth×height |
Supporting drying car | Equipment weight |
| RXH-14-B | CT-Ⅰ | 120 | 1.1 | 20 | 20 | 2800 | ±2 | 48 | 2430×1200×2375 | 2 | 1200 |
| RXH-27-B | CT-Ⅱ | 240 | 2.2 | 40 | 40 | 5200 | ±2 | 96 | 2430×2200×2433 | 4 | 1500 |
| RXH-41-B | CT-Ⅲ | 360 | 3 | 60 | 80 | 8000 | ±2 | 144 | 3430×2200×2620 | 6 | 2000 |
| RXH-54-B | CT-Ⅳ | 480 | 4 | 80 | 100 | 9800 | ±2 | 192 | 4460×2200×2620 | 8 | 2300 |
| RXH-5-C | CT-C-O | 25 | 0.45 | 5 | 5 | 3450 | ±2 | 16 | 1130×1100×1750 | 0 | 800 |
| RXH-7-C | CT-C-ⅠA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | 24 | 1400×1200×2000 | 1 | 1000 |
| RXH-14-C | CT-C-Ⅰ | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 | 1500 |
| RXH-27-C | CT-C-Ⅱ | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 | 1800 |
| RXH-27A-C | CT-C-ⅡA | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 4460×1200×2290 | 4 | 1800 |
| RXH-41-C | CT-C-Ⅲ | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3430×2200×2000 | 6 | 2200 |
| RXH-42A-C | CT-C-ⅢA | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3200×2000 | 6 | 2200 |
| RXH-54-C | CT-C-Ⅳ | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200×2290 | 8 | 2800 |
| RXH-25-A | High-efficiency, high-temperature, far-infrared sterilization oven, power matching is carried out according to temperature requirements | 1200×1000×1600 | 1 | 1200 | |||||||
