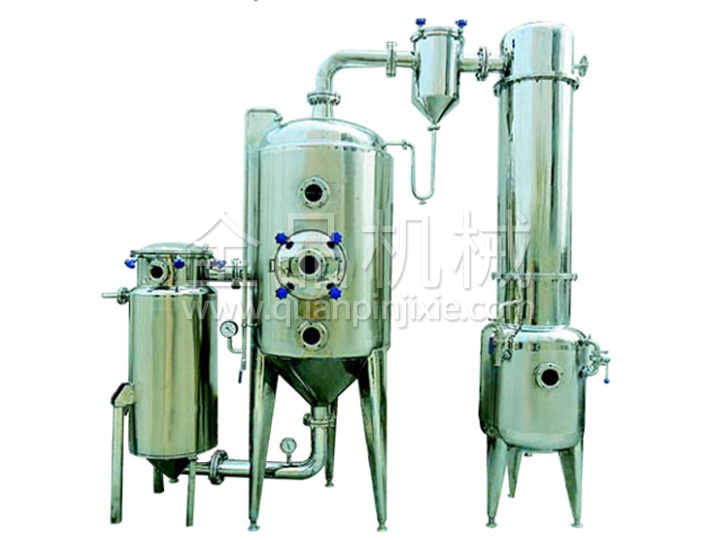

WZ type single-effect external circulation vacuum evaporator

use:
  This equipment is suitable for the evaporation and concentration process of liquid materials in the pharmaceutical, food, chemical, light industry and other industries.

Features:
  1. This equipment is mainly composed of a tubular external heater, a vacuum evaporator and auxiliary devices. The heating time of the material is short, the evaporation speed is fast, and it can better keep the heat-sensitive material effective.
  2, this equipment adopts two-stage defoaming, which significantly reduces the loss of material and liquid.
  3. Simple structure and easy cleaning.
  4. The concentration is large, and the maximum specific gravity can reach 1.35.
  5. All parts in contact with materials are made of high-quality stainless steel, which meets the requirements of pharmaceutical and food hygiene.

WZ type material evaporation process flow chart for solvent recovery purposes:
  This equipment is suitable for the evaporation and concentration process of liquid materials in the pharmaceutical, food, chemical, light industry and other industries.

Features:
  1. This equipment is mainly composed of a tubular external heater, a vacuum evaporator and auxiliary devices. The heating time of the material is short, the evaporation speed is fast, and it can better maintain the material effect of the heat-sensitive material.
  2, this equipment adopts two-stage defoaming, which significantly reduces the loss of material and liquid.
  3. Simple structure and easy cleaning.
  4. The concentration is large, and the maximum specific gravity can reach 1.35.
  5. All parts in contact with materials are made of high-quality stainless steel, which meets the requirements of pharmaceutical and food hygiene.

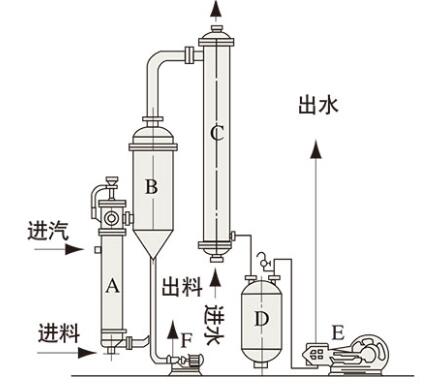

WZ type material evaporation process flow chart for solvent recovery

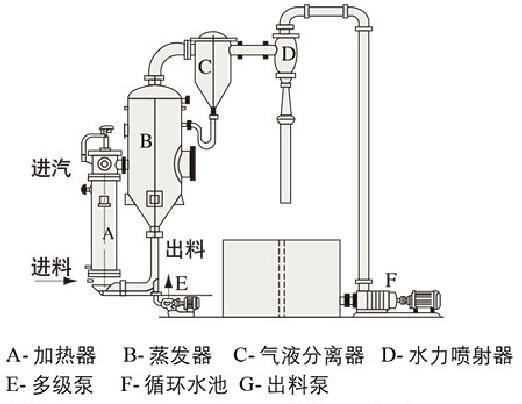

WZ type for aqueous solution evaporation process flow chart

Technical Parameters:

model	WZ-100	WZ-500	WZ-250
Evaporation（kg/h）	1000	500	250
Heating area（m2）	20	10	5
Vacuum in the tank（MPa）	0.07	0.07	0.07
steam pressure（MPa）	0.20	0.20	0.20
Steam consumption（kg/hr）	1300	650	320
equipment weight（kg）	600	400	300
