Overview
TJG series fixed lifting feeder consists of two parts, namely the lifter and the base. The hoist is composed of a frame, a hydraulic hoisting system and a material door turning mechanism. When working, first buckle the material door of the hoist with the material barrel, start the lifting operation lever, the material door and the material barrel rise together, start the flip operation lever, the material barrel can be rotated 180 degrees, and the bottom barrel is upwards and moves To the required position, the material can be easily added to the required process equipment by using the discharge butterfly valve on the material door.
Technical specifications
| Model specifications\parameters | H | A | D | H1 |
| TJG-50 | 2050 | 650 | Φ485 | 2900 |
| TJG-100 | 2050 | 750 | Φ590 | 2900 |
Technical specifications

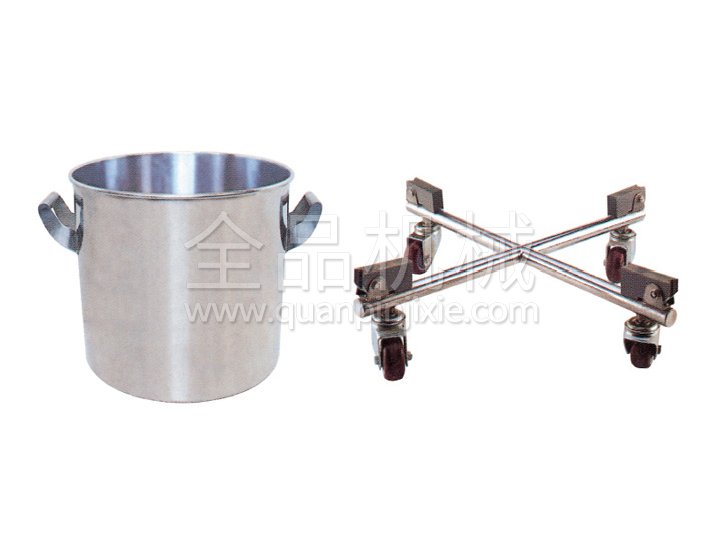

| name | quantity（kg） | Specification (Barrel Diameter×Height) | Wall thickness (mm) |
| Bucket | 50 | Φ485×460 | 0.8 |
| 100 | Φ590×550 | 0.8 | |
| Bucket special vehicle | 50-100 | Φ500×600 |
