Overview

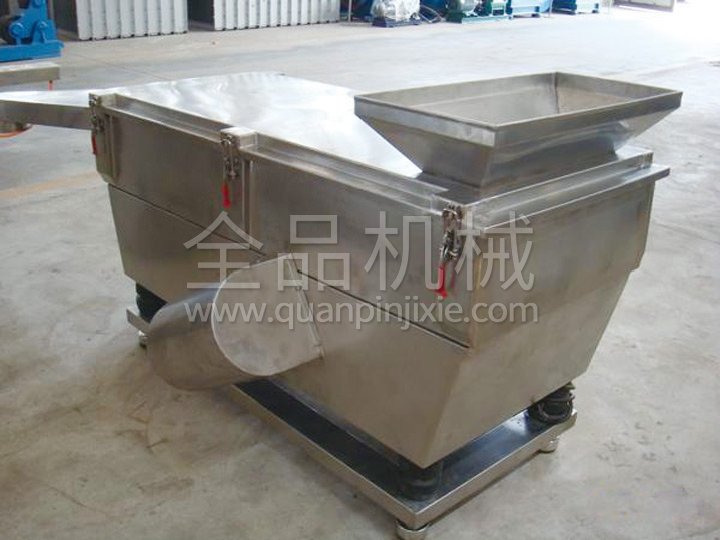

The machine is composed of three major components: inlet and outlet screen mesh box, vibration source and shock absorber. The machine base and the screen box are connected with 4-6 sets of soft rubber shock absorbers to be fixed up and down, and the centrifugal force is generated when the machine is turned on. The amplitude is controlled by the eccentric block and the shock absorber to achieve the required working performance, so that the material has a shock and looseness The sieving process. It is widely used as ideal equipment for screening in the pharmaceutical, food, chemical, metallurgical, electronic and other industries.
Technical specifications
| model |
Production capacity （kg/h） |
Number of meshes (mesh) |
Motor Power (kw/h) |
Vibration frequency(r/min) |
Exciting force(kN) |
Height of upper exit |
Middle exit height |
Lower exit height |
Dimensions (L×W×H) |
weight (kg) |
| FS-0.5M2-X | 450 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 800 | 680 | 500 |
1300×770 ×1060 |
220 |
| FS-0.7M2-X | 650 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 |
1700×680 ×1100 |
280 |
| FS-0.8M2-X | 750 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 |
1600×830 ×1150 |
320 |
| FS-1.2M2-X | 1100 | 2-150 | 0.2×2 | 960 | 0-5×2 | 880 | 760 | 520 |
1900×980 ×1220 |
450 |
