Overview:Performance characteristicsDue to the multi-directional movement of the mixing barrel, the material in the barrel has many cross-mixing points, the mixing effect is high, the uniformity can reach more than 99.9%, the maximum loading coefficient can re…
Performance characteristics
Due to the multi-directional movement of the mixing barrel, the material in the barrel has many cross-mixing points, the mixing effect is high, the uniformity can reach more than 99.9%, the maximum loading coefficient can reach 0.9 (0.4-0.6 for ordinary mixers), and the mixing time Short and high efficiency.
The mixing barrel of this machine has a unique design, the inner wall of the barrel is finely polished, no dead corners, no pollutants, convenient discharging, easy cleaning and simple operation.
working principle
During the operation of the machine, due to the multi-directional operation of the mixing barrel, the flow and diffusion of various materials are accelerated during the mixing process, and at the same time, the segregation and accumulation of the specific gravity of the materials caused by the centrifugal force of the general mixer are avoided. Mixing has no dead ends, which can effectively ensure the best quality of the mixture.

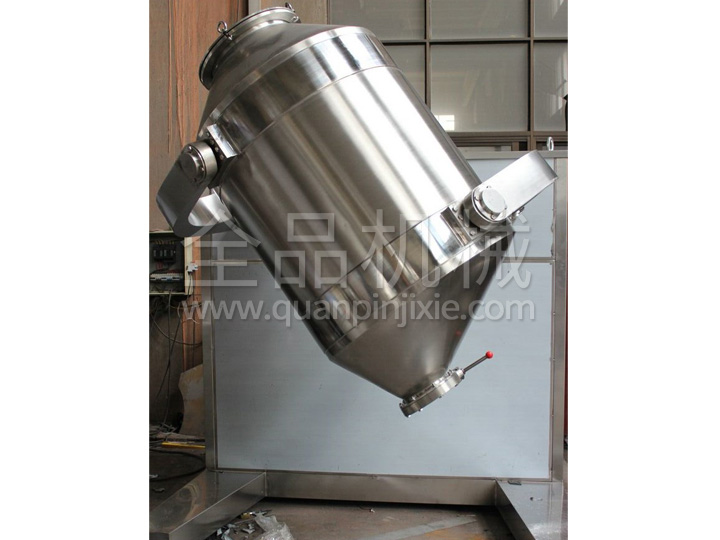

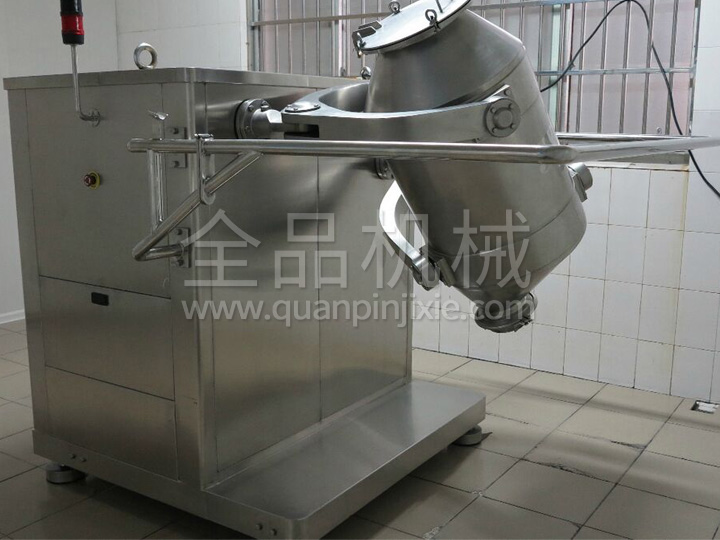

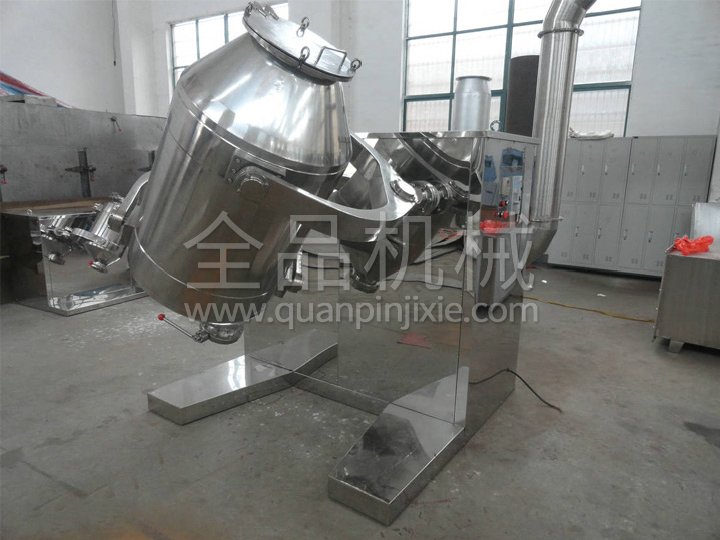

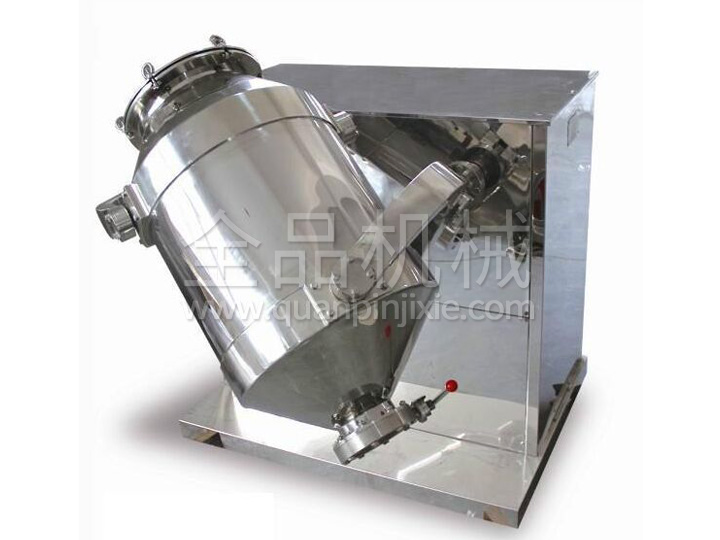

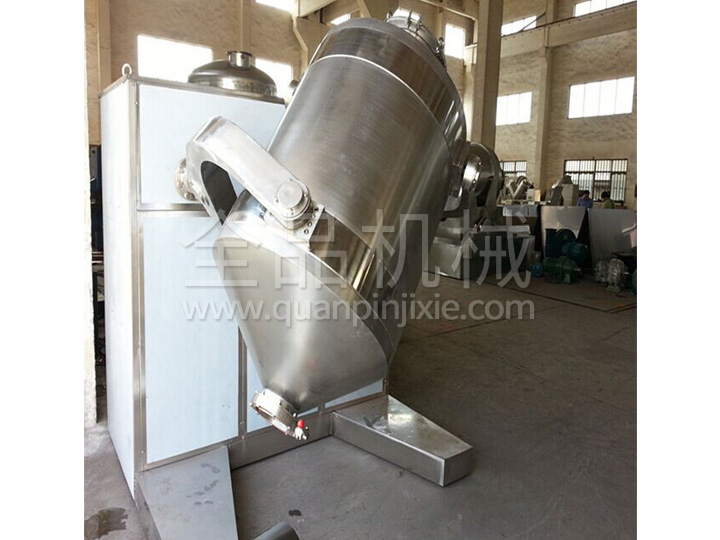

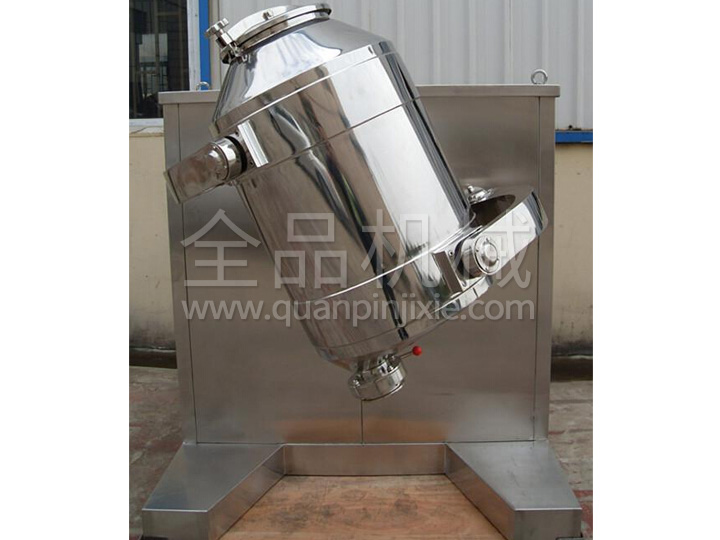

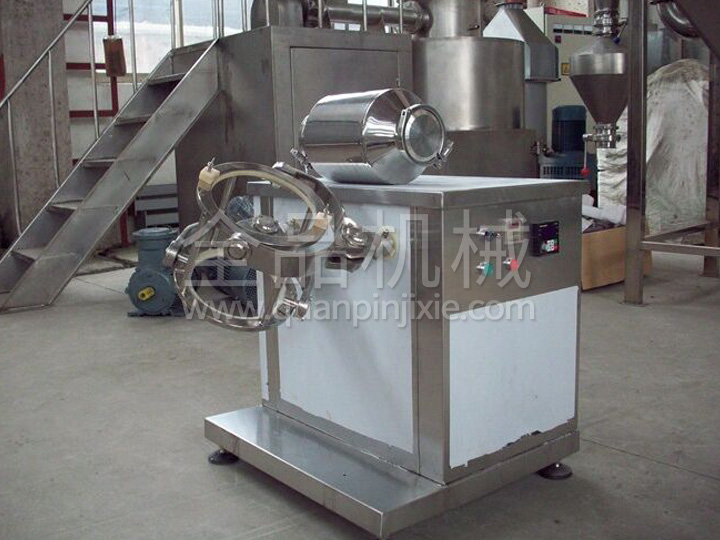

Structure: The machine is composed of machine base, transmission system, electrical control system, multi-directional motion mechanism, mixing drum and other components. The mixing barrel directly in contact with the material is made of high-quality stainless steel, and the inner and outer walls of the barrel are mirror-polished.
Technical specifications
|
model
|
SYH-5
|
SYH-100
|
SYH-200
|
SYH-400
|
SYH-600
|
SYH-800
|
SYH-1000
|
SYH-1500
|
|
|
Mixing tank volume(L) |
5
|
100
|
200
|
400
|
600
|
800
|
1000
|
1500
|
|
|
Maximum loading volume (L) |
4
|
80
|
150
|
300
|
450
|
600
|
750
|
1200
|
|
|
Maximum loading weight (kg) |
5
|
80
|
150
|
200
|
300
|
400
|
500
|
750
|
|
|
Spindle speed (r/min)
|
24
|
15
|
12
|
10
|
10
|
10
|
10
|
10
|
|
|
Motor power (kw)
|
0.37
|
1.5
|
3
|
4
|
5.5
|
7.2
|
11
|
11
|
|
|
Dimensions (mm)
|
L
|
600
|
1200
|
1300
|
1500
|
1800
|
1900
|
1950
|
2600
|
|
W
|
1000
|
1800
|
1600
|
2200
|
2500
|
2400
|
2500
|
2500
|
|
|
H
|
1000
|
1500
|
1500
|
1500
|
1650
|
2100
|
2400
|
2350
|
|
|
Weight (kg)
|
150
|
500
|
750
|
1200
|
1500
|
1650
|
1800
|
2500
|
|
