Overview:Working principleTwo-dimensional mixer is mainly composed of three parts: rotating drum, swinging frame and frame. The rotating drum is mounted on a swing frame, supported by four rollers and axially positioned by two stop wheels. Among the four suppo…

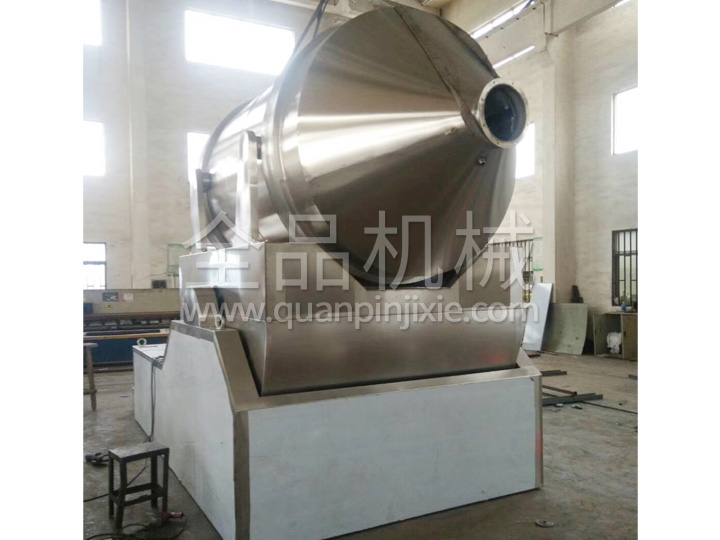

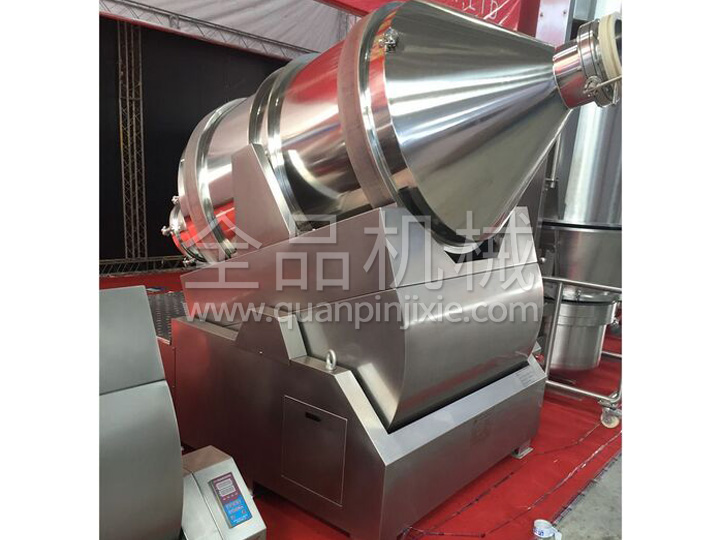

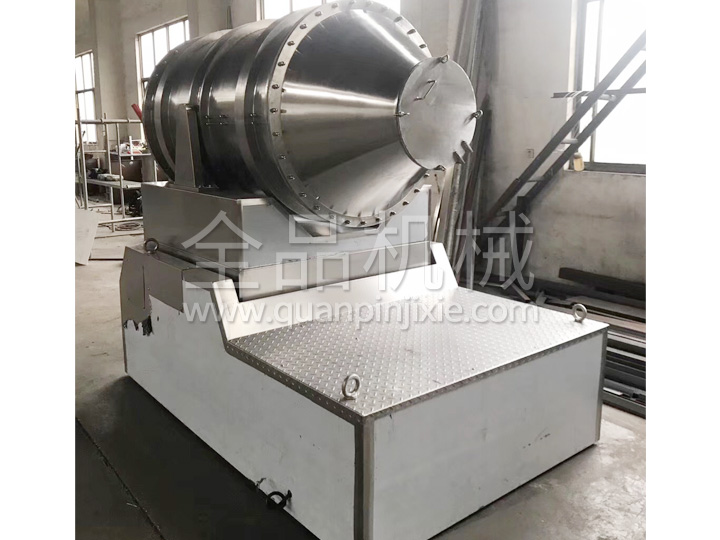

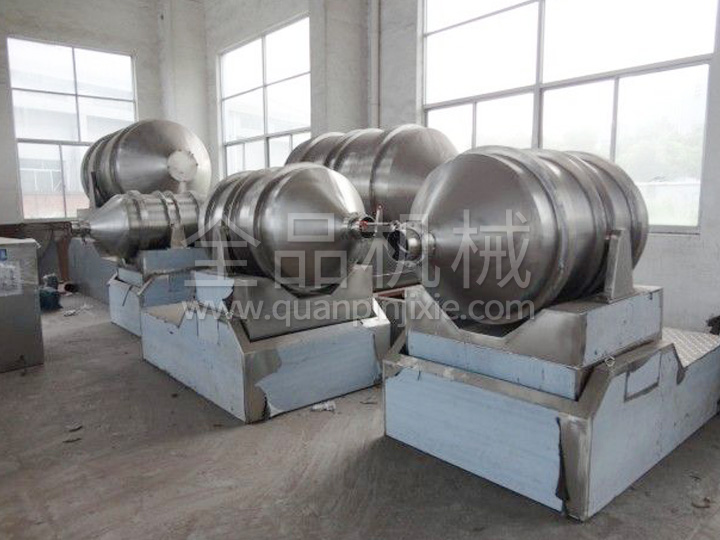

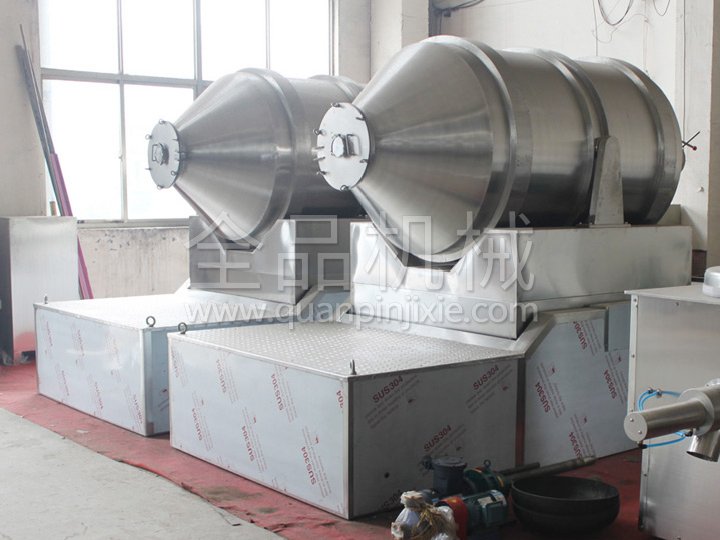

Working principle
Two-dimensional mixer is mainly composed of three parts: rotating drum, swinging frame and frame. The rotating drum is mounted on a swing frame, supported by four rollers and axially positioned by two stop wheels. Among the four supporting rollers, two of the transmission wheels are driven by the rotating power system to make the rotating drum rotate. The swing frame is driven by a set of crank swing rod mechanisms, the crank swing rod mechanism is on the frame, and the swing frame is supported on the frame by a bearing assembly.
Performance characteristics
The drum of the EYH two-dimensional mixer can perform two movements at the same time, one is the rotation of the drum, and the other is the swing of the drum with the swing frame. While the material to be mixed rotates, flips, and mixes with the drum in the drum, it also undergoes mixing movement from left to right and back and forth with the swing of the drum. Under the combined action of these two movements, the material is fully obtained in a short time. the mix of. The EYH two-dimensional mixer is suitable for the mixing of all powder and granular materials.

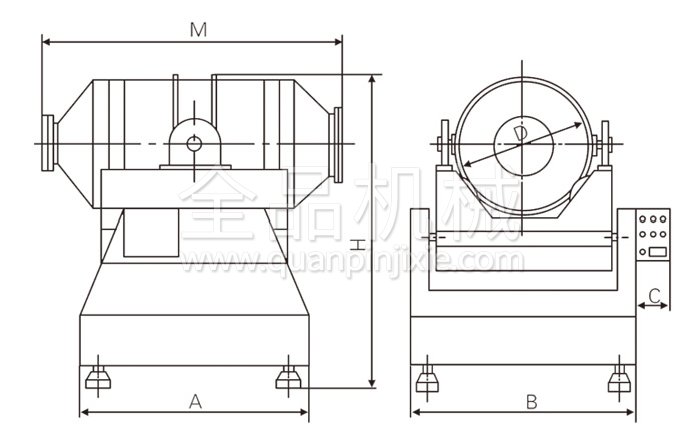

Schematic
Technical specifications
| Specification model | Volume（L） | Loading factor |
Loading weight （kg） |
Dimensions（mm） | power（kw) | ||||||
| A | B | C | D | M | H | Rotate | swing | ||||
| EYH100 | 100 | 0.5 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 0.5 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 0.5 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 0.5 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1000 | 0.5 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 0.5 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 0.5 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 0.5 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 0.5 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 0.5 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 0.5 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 0.5 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 0.5 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
Note: The bulk specific gravity of the material is calculated as 0.6g/cm3. If it exceeds, please indicate it when ordering.
