Overview:Performance characteristics◎This machine transfers powder or granular materials into the double cone container through vacuum conveying or manual feeding. As the container continues to rotate, the materials undergo complex impact movement in the cont…
Performance characteristics

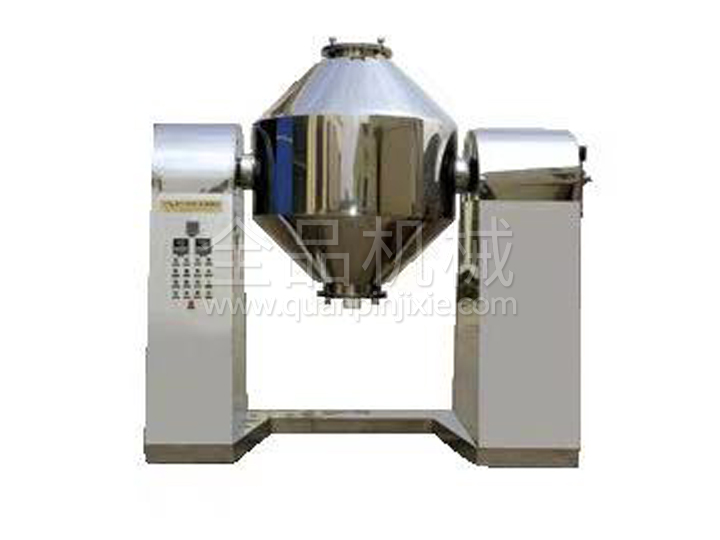

◎This machine transfers powder or granular materials into the double cone container through vacuum conveying or manual feeding. As the container continues to rotate, the materials undergo complex impact movement in the container to achieve uniform mixing.
◎This machine saves energy, is easy to operate, low labor intensity, and high work efficiency.
Adapt to materials
◎This machine is suitable for mixing powdery and granular materials in the pharmaceutical, chemical, food, building materials and other industries.
Technical specifications
| Specifications\Project |
Total volume L |
Working volume L |
Feeding amount kg |
Feeding speed rpm |
power kw |
weight kg |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
