Overview:Working principleThis model is composed of a container, spiral mixing blades and transmission components: the spiral blades are generally made of double or triple layers. The outer spiral gathers materials from both sides to the center, and the inner …
Working principle

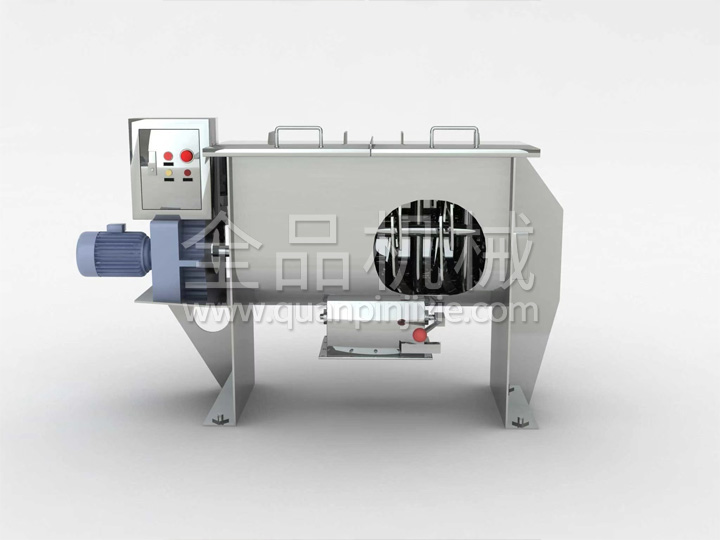

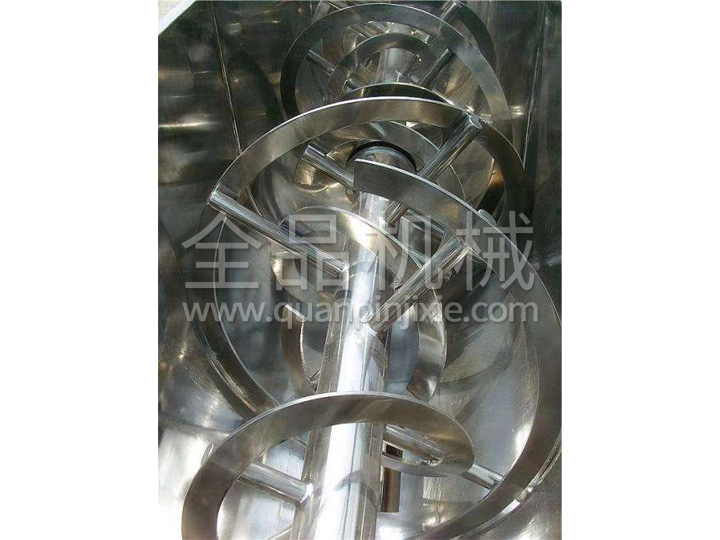

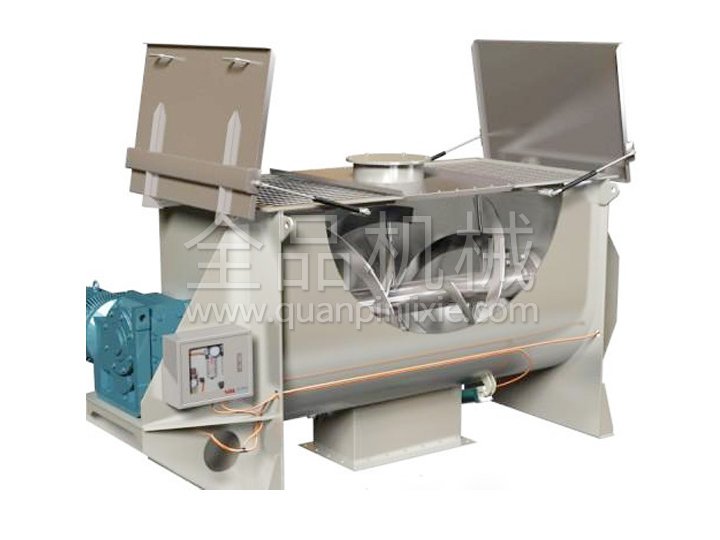

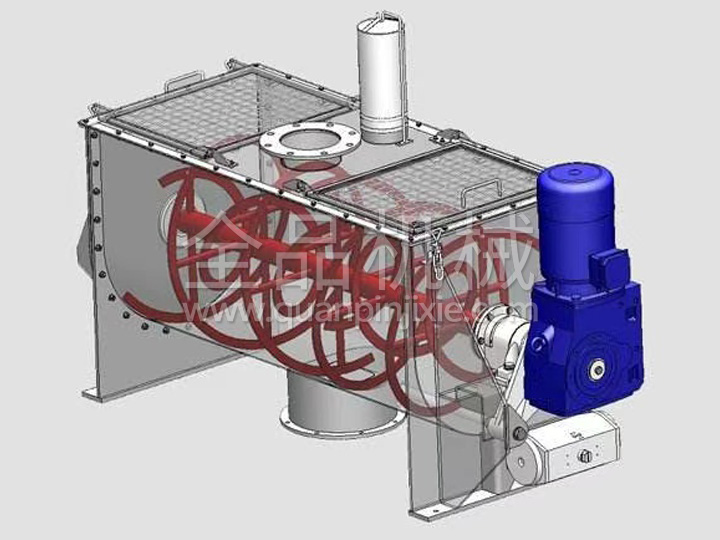

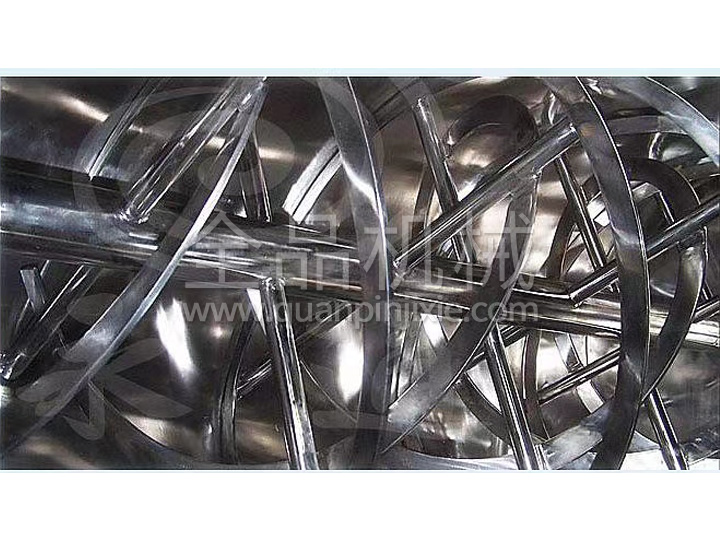

This model is composed of a container, spiral mixing blades and transmission components: the spiral blades are generally made of double or triple layers. The outer spiral gathers materials from both sides to the center, and the inner spiral conveys the materials from both sides of the center to form convection. mixing.
Performance characteristics
◎The loading factor is large, and the equipment area is small:
◎It is difficult to clean when mixing viscous or cohesive materials.
Adapt to materials
◎The ribbon mixer is generally used for the mixing of viscous or cohesive powders and granules, as well as the mixing of liquid and paste materials added to the powders and granules. At the same time, due to the difficult cleaning of viscous materials, it is suitable for large output and infrequent replacement. Varieties are mixed for occasions.
Technical specifications
| Model specification | WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH-1 | WLDH-1.5 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 | WLDH-8 | WLDH-10 |
| One-time mixing(kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Motor Power(kg) | 1.5-4 | 3-3.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 37-55 |
| equipment weight(kg) | 300 | 500 | 900 | 1400 | 1900 | 2500 | 3100 | 3600 | 5300 | 6800 | 7800 |
Note: The materials of the above products are divided into carbon steel C and stainless steel P.
