Overview:Product description:The two series of micro pulverizers and ultra-fine pulverizers are composed of three parts: main machine, auxiliary machine and electronic control. They are compact in design and reasonable in structure. They are air-selected and h…
Product description:

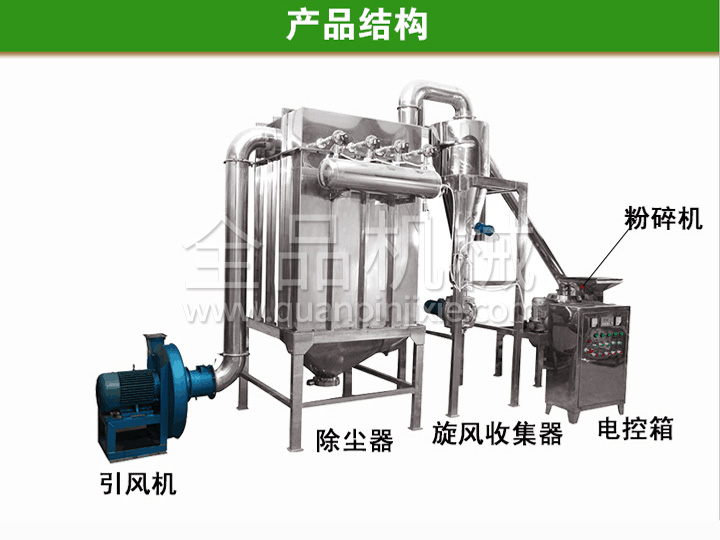

The two series of micro pulverizers and ultra-fine pulverizers are composed of three parts: main machine, auxiliary machine and electronic control. They are compact in design and reasonable in structure. They are air-selected and have no screen or net. The machine is equipped with a grading structure to Crushing and grading are completed at one time. Negative pressure conveying can continuously discharge the heat energy generated in the machine cavity during the crushing operation, so it is also suitable for the crushing of heat-sensitive materials.

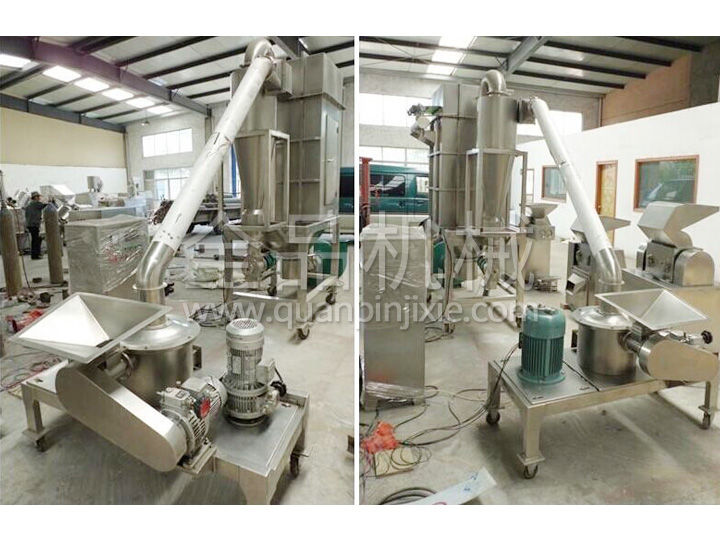

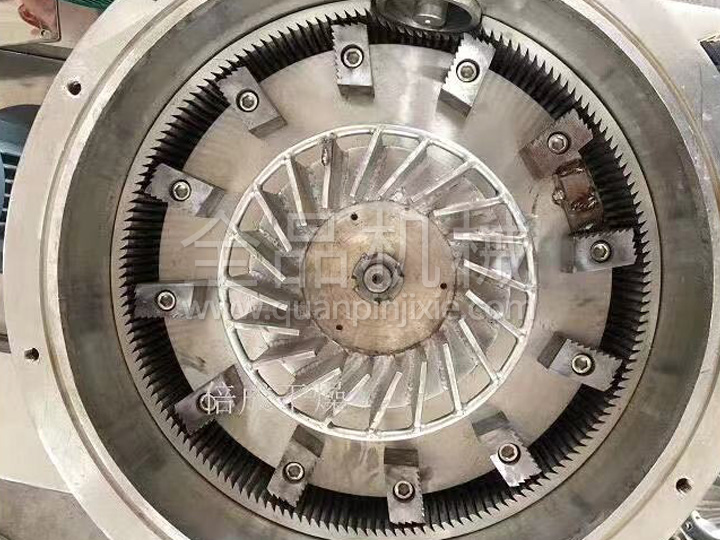

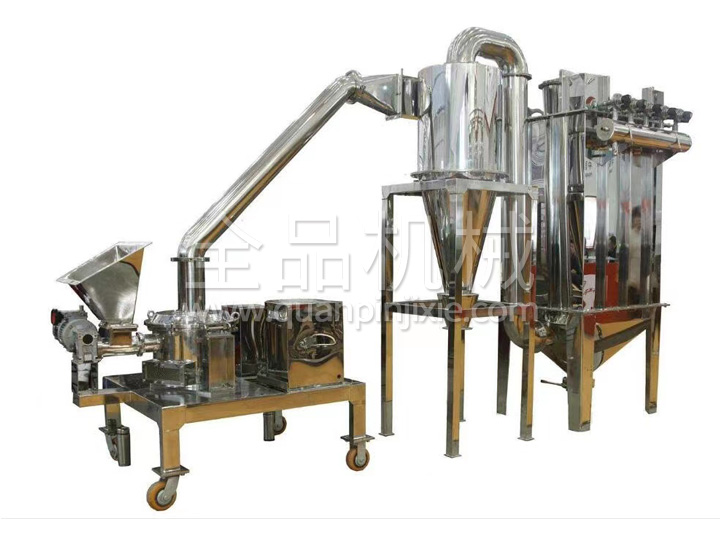

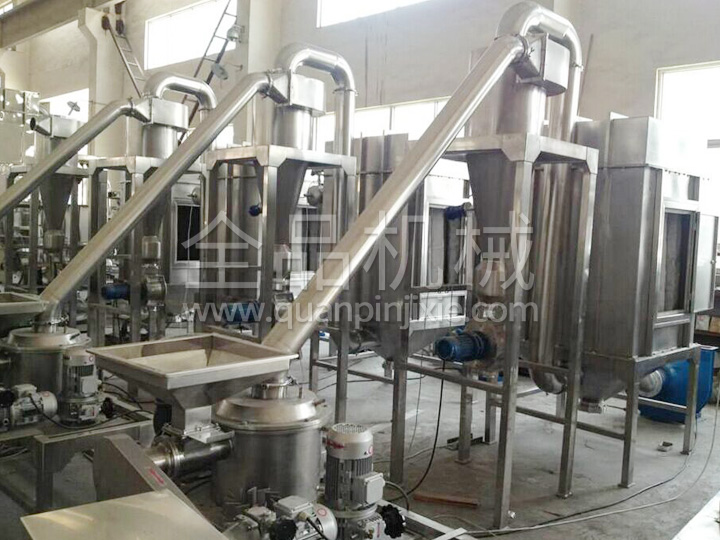

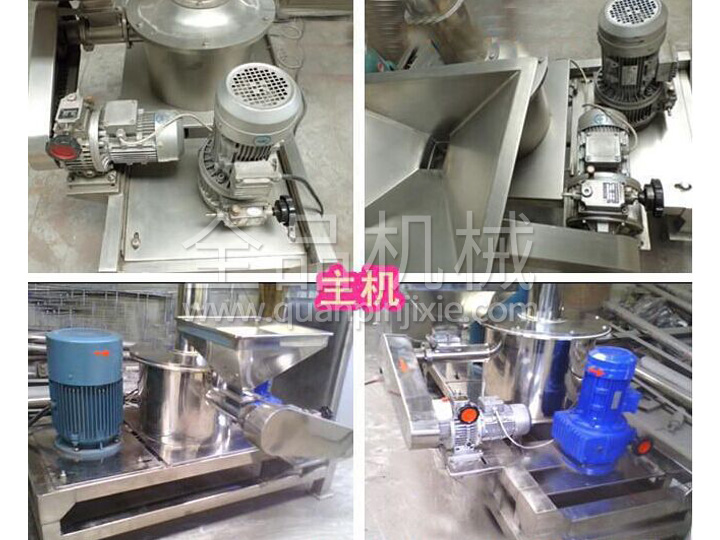

Product details picture collection
Uses and features:
It is composed of three parts: main machine, auxiliary machine, and electric control. It has compact design and reasonable structure. It has a winnowing type, no screen and no net. The machine is equipped with a grading structure, which can make crushing and grading completed at one time. Negative pressure conveying can continuously discharge the heat energy generated in the cavity during the crushing operation, so it is also suitable for the crushing of heat-sensitive materials. This machine has a wide range of applications, continuous production process, and adjustable discharging particle size; it can handle the crushing and classification of various materials such as chemicals, food, medicine, cosmetics, dyes, resins, shells and so on.
Technical specifications：
|
Specification model
|
CWFJ-15
|
CWFJ-18
|
CWFJ-36
|
CWFJ-60
|
|
Production capacity(kg/h)
|
10-200
|
20-400
|
60-900
|
100-1500
|
|
Feed particle size(mm)
|
<10
|
<12
|
<15
|
<18
|
|
Discharge size（mesh）
|
120-300
|
120-300
|
120-300
|
120-300
|
|
Total power(kw)
|
18.67
|
31.7
|
46
|
76.7
|
|
Dimensions(L×W×H)(mm)
|
5510×2130×3115
|
5800×2500×3500
|
9000×2800×4000
|
9000×3000×5280
|
