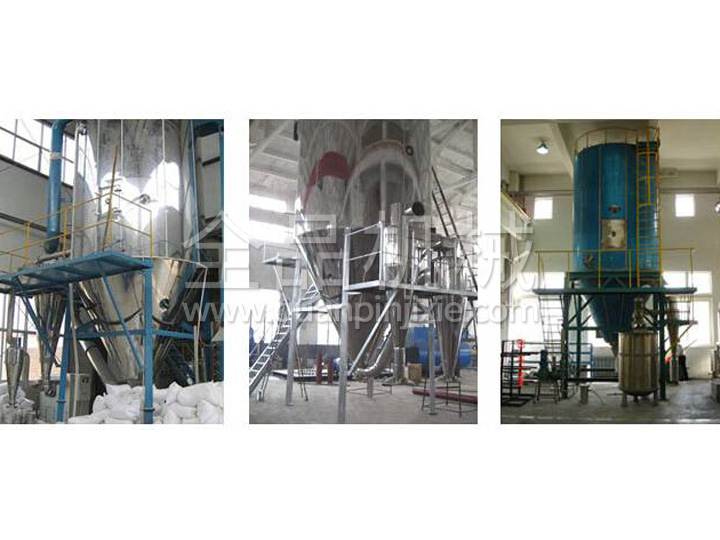

Titanium dioxide centrifugal spray dryer

Overview of titanium dioxide:

Titanium dioxide, a white solid or powdered amphoteric oxide, molecular weight: 79.87, is a white inorganic pigment with non-toxic, good opacity, whiteness and brightness, and is considered a white pigment with ideal performance at present. Titanium white has strong adhesion, is not easy to undergo chemical changes, and the color is snow white.

It can be used in coatings, plastics, papermaking, printing inks, chemical fiber, rubber, cosmetics and other industries. It has a high melting point and is also used to make refractory glass, glaze, enamel, clay, high temperature resistant laboratory utensils, etc. Titanium dioxide is an important white pigment and porcelain glaze. Used in paint, ink, plastic, rubber, paper, chemical fiber, watercolor paint and other industries.

Working principle of titanium dioxide centrifugal spray dryer:

After filtering and heating, the air enters the air distributor on the top of the dryer, and the hot air enters the drying chamber evenly in a spiral shape. The material liquid passes through the high-speed centrifugal atomizer at the top of the tower, and (rotating) sprays into very fine misty liquid beads, which can be dried into finished products in a very short time in co-current contact with hot air. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is evacuated by the fan.

Technical parameters of centrifugal spray dryer

Model/item/parameter	5	25	50	150	200-2000
Inlet temperature	140-350 Self-control
output temperature	80-90
Upper limit of water evaporation（kg/h）	5	25	50	150	200-2000
Transmission form of centrifugal spray head	Compressed air transmission	Mechanical transmission
Speed limit（r.p.m）	25000	18000	18000	15000	8000-15000
Diameter of spray disc（mm）	50	120	120	150	180-240
Heat source	电	Steam + electricity	Steam + electricity, fuel oil, gas, hot air stove
Upper limit of electric heating power（kw）	9	36	72	99
Dimensions (length×width×height)（m）	1.8×0.93×2.2	3×2.7×4.26	3.5×3.5×4.8	5.5×4×7	According to the actual situation
Dry powder recycling（%）	≥95

Note: The amount of water evaporation is related to the characteristics of the material and the temperature of the hot inlet and outlet. When the outlet temperature is 90oC, the water evaporation curve is shown in the above figure (for reference for selection). As the product is continuously updated, the relevant parameters will be changed without prior notice.
