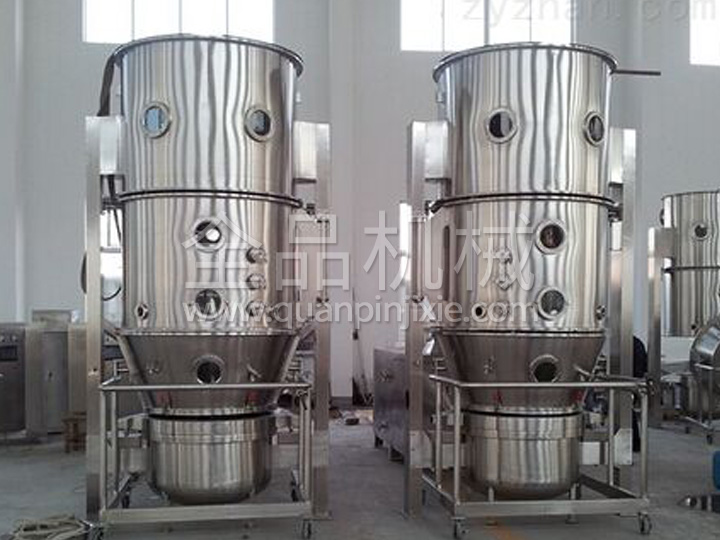

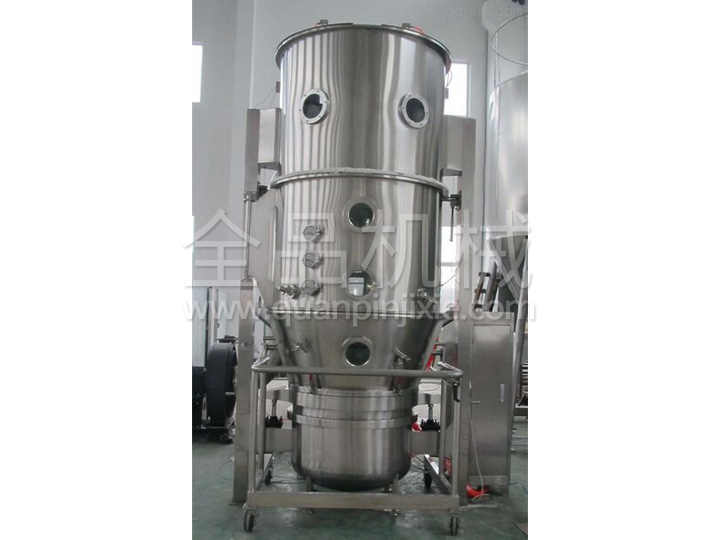

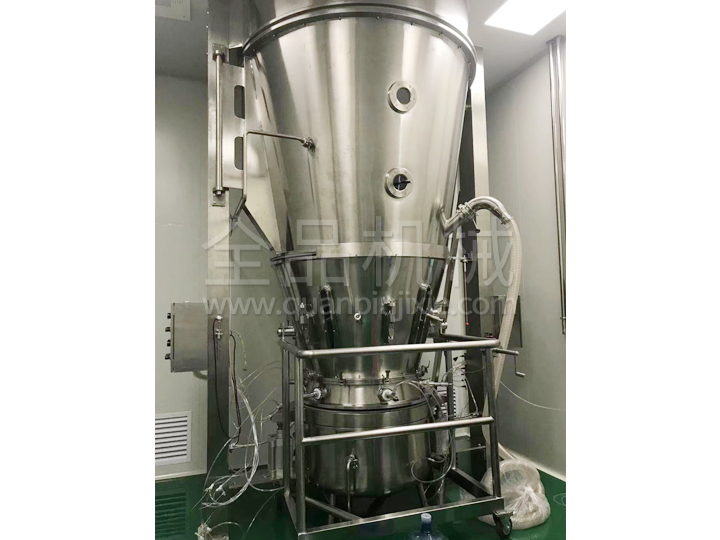

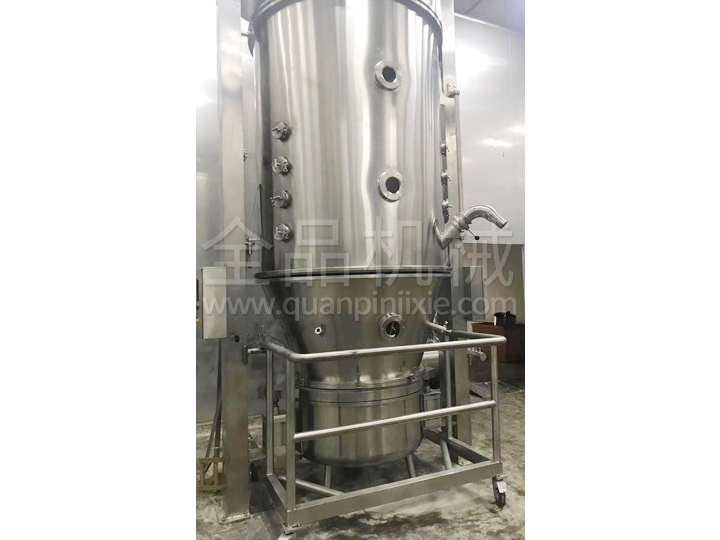

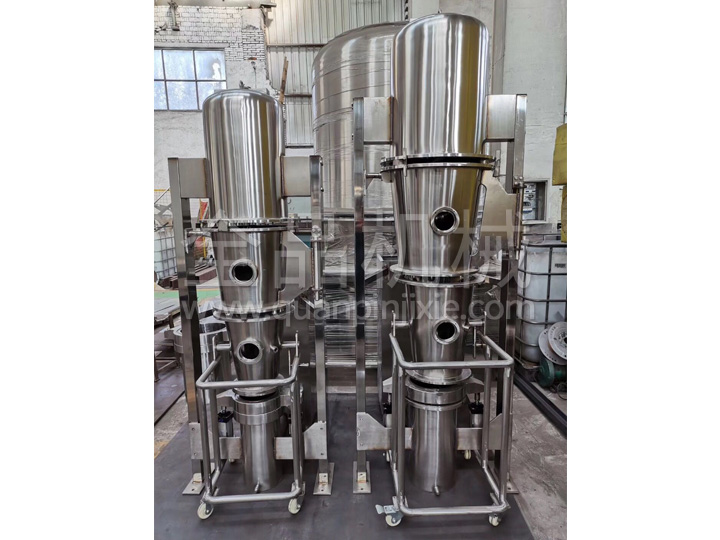

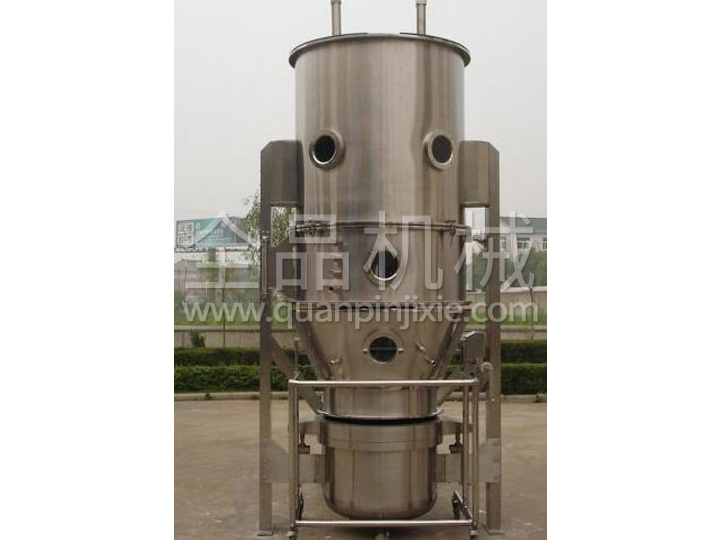

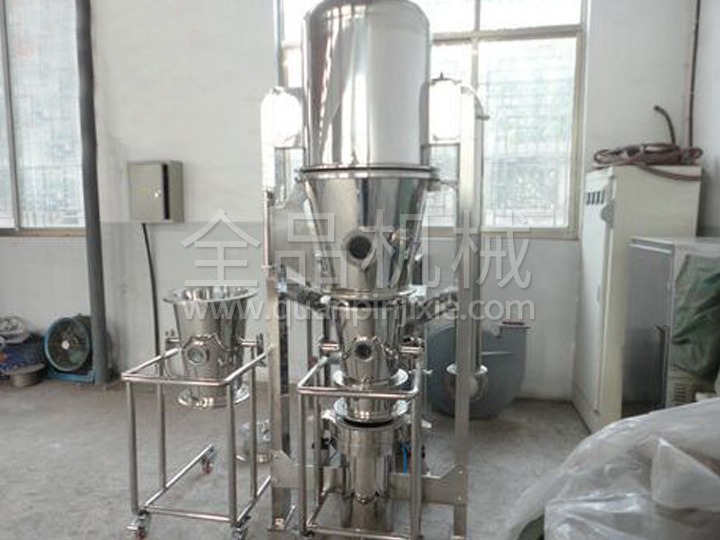

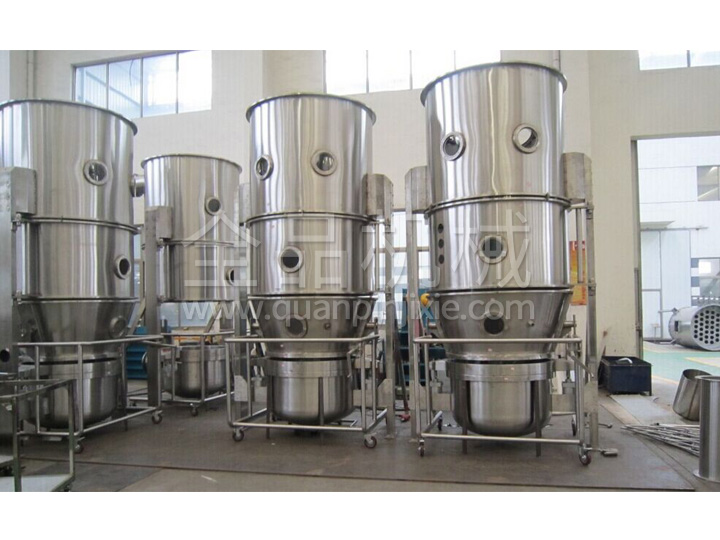

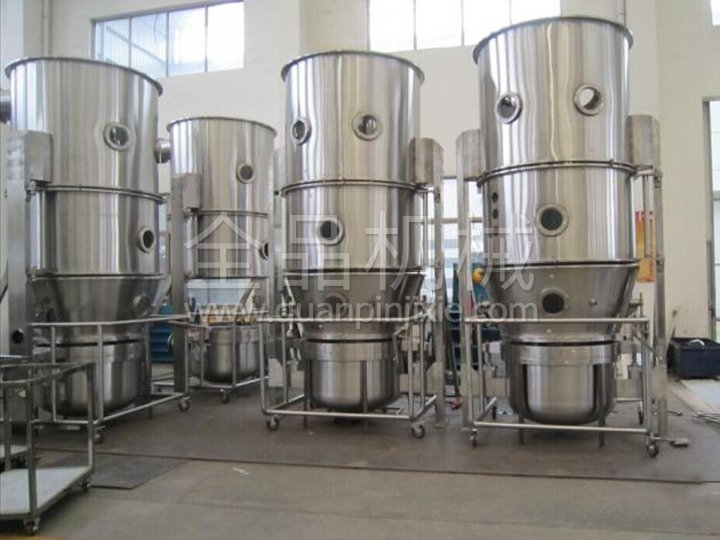

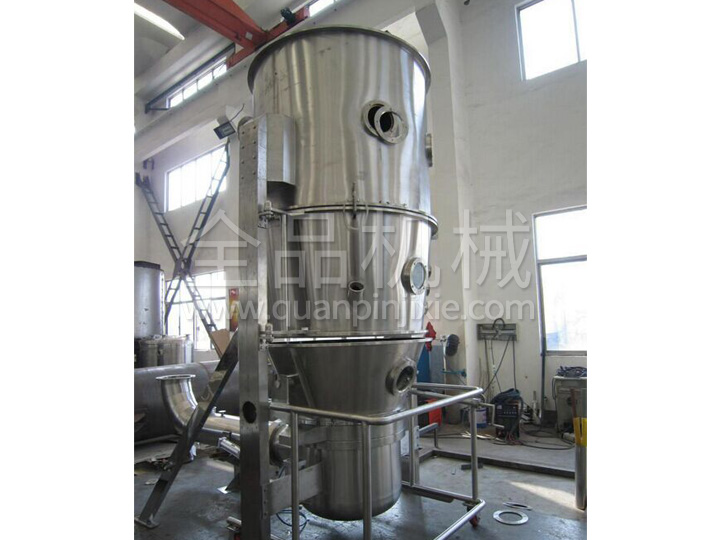

FL-B series boiling granulating dryer

Application
  ● Granulation in the pharmaceutical industry: tablet granules, granular granules, capsule granules.
  ● Granulation in the food industry: cocoa, coffee, milk powder, granular juice, condiments, etc.
  ● Granulation in other industries: pesticides, feed, fertilizers, pigments, dye chemicals, etc.
  ● Drying of powdery or granular wet materials.
  ● Coating: granule, pill protective layer, color preparation, slow release, film, enteric coating, etc.
Working principle
  The powder particles of the material are in an annular fluidized state in the raw material container (fluidized bed). They are preheated and mixed by the purified heated air, and the binder solution is sprayed into the atomization, so that several particles are aggregated to contain the binder Due to the continuous drying of the material by the hot air, the moisture in the pellets will evaporate and the binder will solidify. This process is repeated continuously to form ideal and uniform microporous spherical particles.
Features
  ● Through powder granulation, improve fluidity and reduce dust flying:
  ● Improve its dissolution performance through powder granulation;
  ● Mixing, granulating, and drying complete one-step granulation in one machine;
  ● Using anti-static filter cloth, the equipment is safe to operate;
  ● Set pressure relief holes, once an explosion occurs, equipment personnel will not be injured;
  ● The equipment has no dead corners, loading and unloading is light and fast, and it is cleaned and meets GMP specifications.
Technical specifications

project		model
		3	5	15	30	60	120	200	300	500
Raw material  container	capacityL	12	22	45	100	220	420	670	1000	1500
	diametermm	300	400	550	700	1000	1200	1400	1600	1800
Production capacity	The smallestKg	1.5	4	10	15	30	80	100	150	250
	maximumKg	4.5	6	20	45	90	160	300	450	750
Fan	Air volumem3/h	1000	1200	1400	1800	3000	4500	6000	7000	8000
	Wind pressurem mH2O	375	375	480	480	950	950	950	950	950
	powerKw	3	4	5.5	7.5	11	18.5	22	30	45
Steam consumption Kg/h		15	23	42	70	141	211	282	366	451
Compressed air consumption  m3/min		0.9	0.9	0.9	0.9	1.0	1.0	1.1	1.5	1.5
Host weight Kg		500	700	900	1000	1100	1300	1500	1800	2000
Steam pressure Mpa		0.3～0.6
Temperature ℃		Adjustable from room temperature to 120℃
Operation time min		Depends on material characteristics 45~90
Material recovery rate﹪		≥99
Noise dB(A)		The fan is installed separately from the main engine, and the noise is ≤75 dB(A)
Host outline size L×W×H m		1.0×0.6 ×2.1	1.2×0.7 ×2.1	1.25×0.9 ×2.5	1.6×1.1 ×2.5	1.85×1.4 ×3	2.2×1.65 ×3.3	2.34×1.7 ×3.8	2.8×2.0 ×4.0	3×2.25 ×4.4
